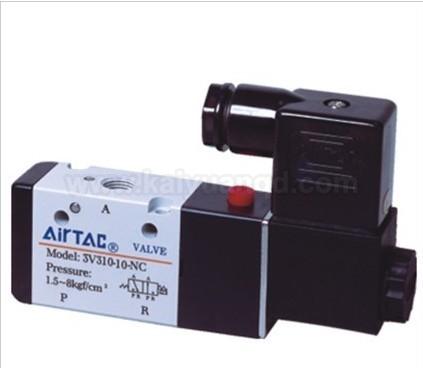

AIRTAC电磁阀高仿亚德客电磁阀4V210-08

AIRTAC电磁阀

马上询价

AIRTAC电磁阀高仿亚德客电磁阀4V210-08 详细介绍

AIRTAC电磁阀4V310-10 4V410-15 Airtac4V210-08 真品亚德客电磁阀
AIRTAC系列电磁阀3V1-M5,3V1-06,3V110-M5,3V120-M5,3V110-06,3V120-06,3V210-
06,3V220-06,3V210-08,3V220-08,3V310-08
3V320-08,3V310-10,3V320-10,4V110-M5,4V120-M5,4V130C-M5,4V130E-M5,4V130P-
M5,4V110-06,4V120-06,4V130C-06
4V130E-06,4V130P-06,4V210-06,4V220-06,4V230C-06,4V230E-06,4V230P-06,4V210-
08,4V220-08,4V230C-08,4V230E-08
4V230P-08,4V310-08,4V320-08,4V330C-08,4V330E-08,4V330P-08,4V310-10,4V320-
10,4V330C-10,4V330E-10,4V330P-10
4V410-15,4V420-15,4V430C-15,4V430E-15,4V430P-15,2V025-06,2V025-08,2V130-
10,2V130-15,2V250-20,2V250-25,3A110-M5
3A120-M5,3A110-06,3A120-06,3A210-06,3A220-06,3A210-08,3A220-08,3A310-08,3A320
-08,3A310-10,3A320-10,4A110-M5
4A120-M5,4A130C-M5,4A130E-M5,4A130P-M5,4A110-06,4A120-06,4A130C-06,4A130E-
06,4A130P-06,4A210-06,4A220-06
4A230C-06,4A230E-06,4A230P-06,4A210-08,4A220-08,4A230C-08,4A230E-08,4A230P-
08,4A310-08,4A320-08,4A330C-08
4A330E-08,4A330P-08,4A310-10,4A320-10,4A330C-10,4A330E-10,4A330P-10,4A410-
15,4A420-15,4A430C-15,4A430E-15
4A430P-15,4H210-06,4H210-08,4H310-08,4H310-10,3L110-06,3L210-06,3L210-
08,3L310-08,3L310-10,4L110-06,4L210-06
4L210-08,4L310-08,4L310-10,HSV06,HSV08,HSV10,HSV15,HSV20,HSV25,4HV210-
06,4HV230-06,4HV210-08,4HV230-08
4HV310-08,4HV330-08,4HV310-10,4HV330-10,4HV410-15,4HV430-15,4HV410-20,4HV430-
20,3FM210-M5,3F210-06,3FM210-06
3F210-08,3FM210-08,4F210-08,4F210-08L,4F210-08G,4F210-08LG,4FM210-06,4FM210-
06L,4FM210-08,4FM210-08L,

AIRTAC电磁阀高仿亚德客电磁阀4V210-08相关产品展示

手动阀HV200-02/VH200-02/HV400-02 HV200-02/VH200-02/ HV-04 HV-03 HV-02
HV手转阀
Media:Air
Type:4 Port 2 Position or 4 Port 3 Position
Flow Control:Cv 1.67
Port Size:1/4 in. NPT
Minimum Pressure:0 psi
Maximum Pressure:116 psi
Minimum Temperature:23 F
Maximum Temperature:145 F
Installation:S

Colour on your demand.

HV200 Series: Small size valve body

HV400 Series:Big size valve body

...详细内容
电磁阀K4V210-08 K4V220-08 K4V230-08K4V210-08 K4V220-08 K4V230-08
4V210-06 4V220-06 4V230C-06 4V230E-06 4V230P-06 4V210-08 4V220-08 4V230C-08 4V230E-08 4V230P-08
4A210-06 4A220-06 4A230C-06 4A230E-06 4A230P-06 4A210-08 4A220-08 4A230C-08 4A230E-08 4A230P-08
Position and way NO. 5/2 way 5/3Five-way 5/2 way 5/3 way
Effective area 14mm2(CV=0.78) 12mm2(CV=0.67) 16mm2(CV=0.89) 12mm2(CV=0.67)
Model 3V210-06 3V220-06 3A210-06 3A220-06 3V210-08 3V220-08 3A210-08 3A220-08
Position and way NO. 3/2 way 3/2 way
Effective area 14mm2(CV=0.78) 16mm2(CV=0.89)
Port size Air inlet=Air outlet=Exhaust=G1/8″ Air inlet=Air outlet=G1/4″ Exhaust=G1/8″
Fluid 40 micron fi ltered air
Operation Inside pilot type
Operating pressure 0.15~0.8MPa
Max. proof pressure 1.2MPa
Temperature 5~50oC
Allowable voltage ±10% of rated voltage
Power consumption AAC: 4.5VA DC: 3W
Coil insulation & protection grade Class F.IP65
Electrical entry Lead wire or connector
Highest action frequency 5 cycle/second
Shortest excitation time 0.05 second

...详细内容
亚德客型5/2 通3/2板式电磁阀 4M210-08,4M310-10,4M410-15,4M220-08,4M320-10,4M420-15
4M100-400电磁阀
板式安装电磁阀两位五通两位三通电磁阀
...详细内容
DFL24-12 DFL23-12 DFL24-15 DFL23-15铝厂专用电磁阀两位五四电磁阀DFL24-12

dfl24-12直动式电磁阀使用说明

dfl直动式电磁阀说明，适用于:空气、水、油。流动方向：定向。安装位置：任意。主要特点：直动截止式密封，也可手动密封。可用于真空达133*10mpo，高寿命实现气动控制。工作压力：0.15-0.8mpa

环境温度：-5~50摄氏度

介质温度：-5~40摄氏度

有效截面积：10、20、40、60、110、190平方毫米

换向时间：≤0.04 ≤0.06 ≤0.10

换向频率：≥10 ≥8 ≥5

内泄露量：≤10 ≤25 ≤50

寿命：≥200 ≥350

使用产品须知：

1、使用前注意检查元件是否损坏，然后安装使用。

2、安装时，请注意气体流动方向及接管是否正确，电压是否符合要求。

3、注意防尘。

4、连接管路时，注意除清管接头、管子内的金属颗粒、粉尘及油污等。

...详细内容

以上是产品AIRTAC电磁阀高仿亚德客电磁阀4V210-08（控制元件）的详细介绍，如果想要更多相关产品，请点击以下目录。
